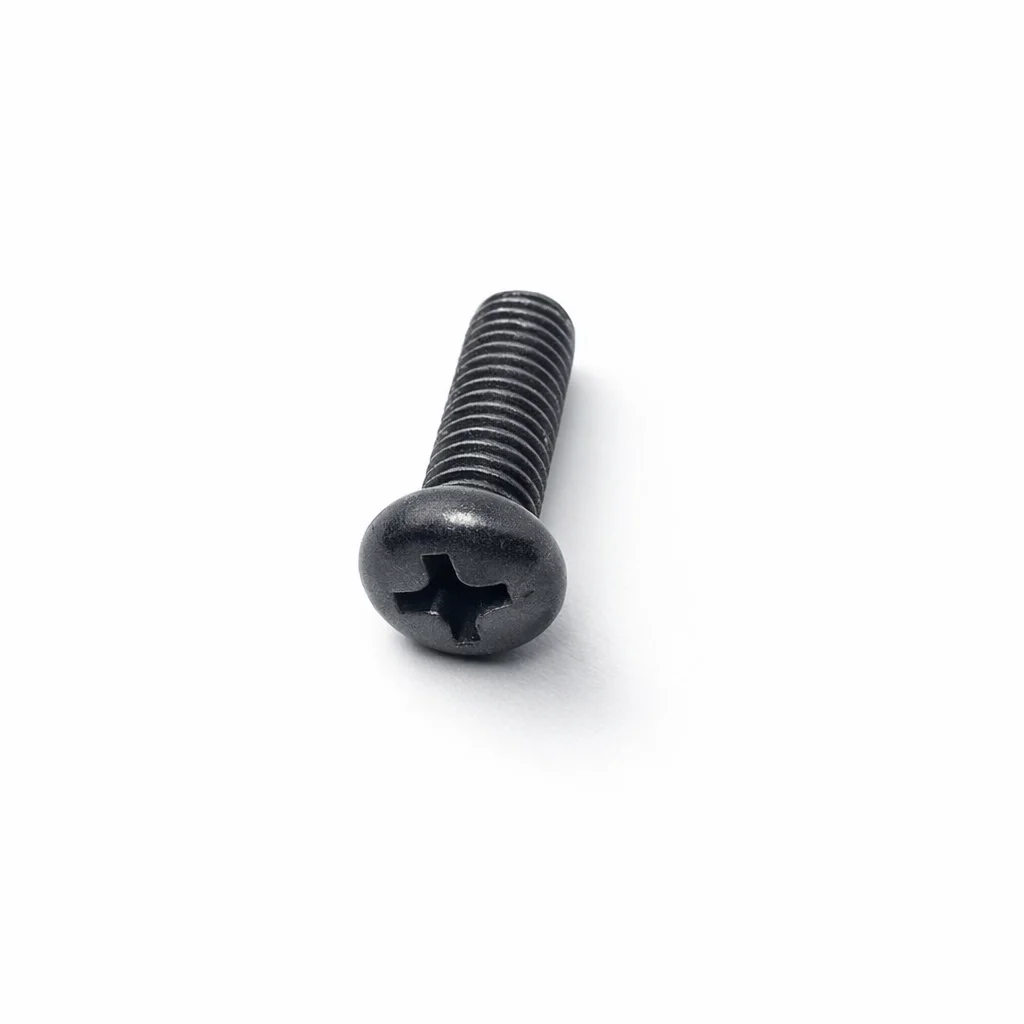

Original DeWalt 1004691-73 — Replacement screw (factory part)

Keep your tool running the way it was built: this is the original DeWalt-numbered 1004691-73 screw used in the 1004691-series gear / housing assembly. It’s listed for model KFFMED1250 rotary-hammer. (shown as SB-1004691-73). The screw is shown adjacent to a 5 mm washer (part 1004691-72) on the same diagram, so it matches with that washer in the assembly.

Why this part matters

- Direct-fit replacement for the gearcase assembly where that fastener is called out (position 47 in the exploded view). — useful when a single factory screw is needed to restore proper alignment and secure the cover / gear components.

Example model(s) where this part appears on the parts diagram

If you need a single, exact-fit screw to replace a lost or damaged fastener for the rotary hammer drill, this is the factory-numbered shown in the diagram — it’s the correct factory-design screw for that position.
